KR VAVLE
1 / 2
| Valve Type: | 200X pressure reduce valve | Structure: | Diaphragm type |
| Standard: | BS/API/DIN/JIS | Workmanship: | Investment casting |
| Sealing direction: | Single-directional | Sealing grade: | Zero leakage |
| Temperature: | 0°C < T < 80°C | Operation: | Automatic |

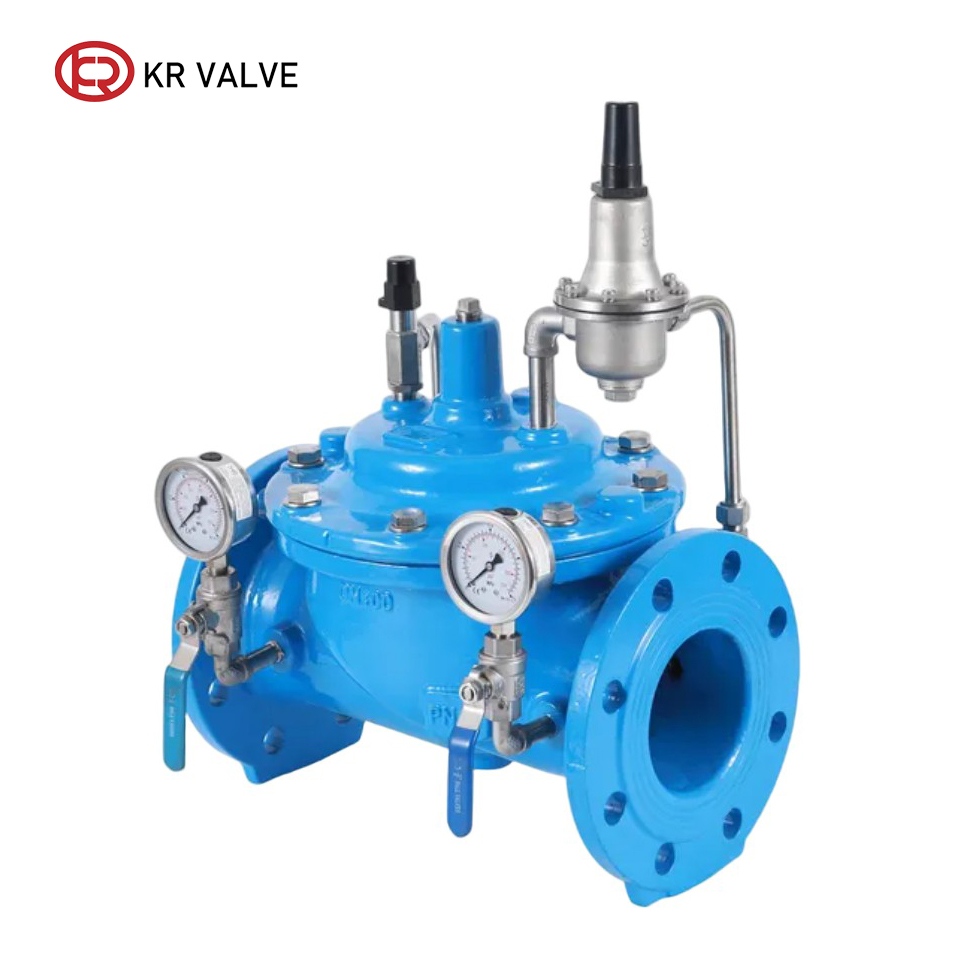

The 200X pressure reducing valve is a functional valve that regulates and controls the pipeline pressure by using the energy of the medium itself. The outlet pressure of the main valve can be adjusted by adjusting the relief pilot valve. The outlet pressure does not change due to the change of inlet pressure and inlet flow. The outlet pressure is safely and reliably maintained at the set value, and the set value can be adjusted according to the need to achieve the purpose of pressure reduction. The valve features accurate pressure reduction, stable performance, safety and reliability, convenient installation and long service life.
The main valve adopts a rubber diaphragm + soft seal structure, ensuring excellent sealing performance, preventing leaks, and reducing water waste.
Constructed primarily from nodular cast iron or steel, the valve body offers high strength, water pressure resistance, and wear resistance for a long operational life.
Standard microfilters prevent foreign matter from seizing the pilot valve, significantly reducing potential failures.
Equipped with pressure gauges for visual monitoring of inlet and outlet pressure, facilitating easy commissioning and troubleshooting.
Designed for easy disassembly, allowing for quick cleaning and replacement of wearing parts like diaphragms and springs at a low cost.
Each unit is carefully packed in standard export wooden cases to ensure maximum protection during international transit.
The 200X hydraulic control valve is widely used in high-demand environments requiring stable pressure reduction and stabilization.
