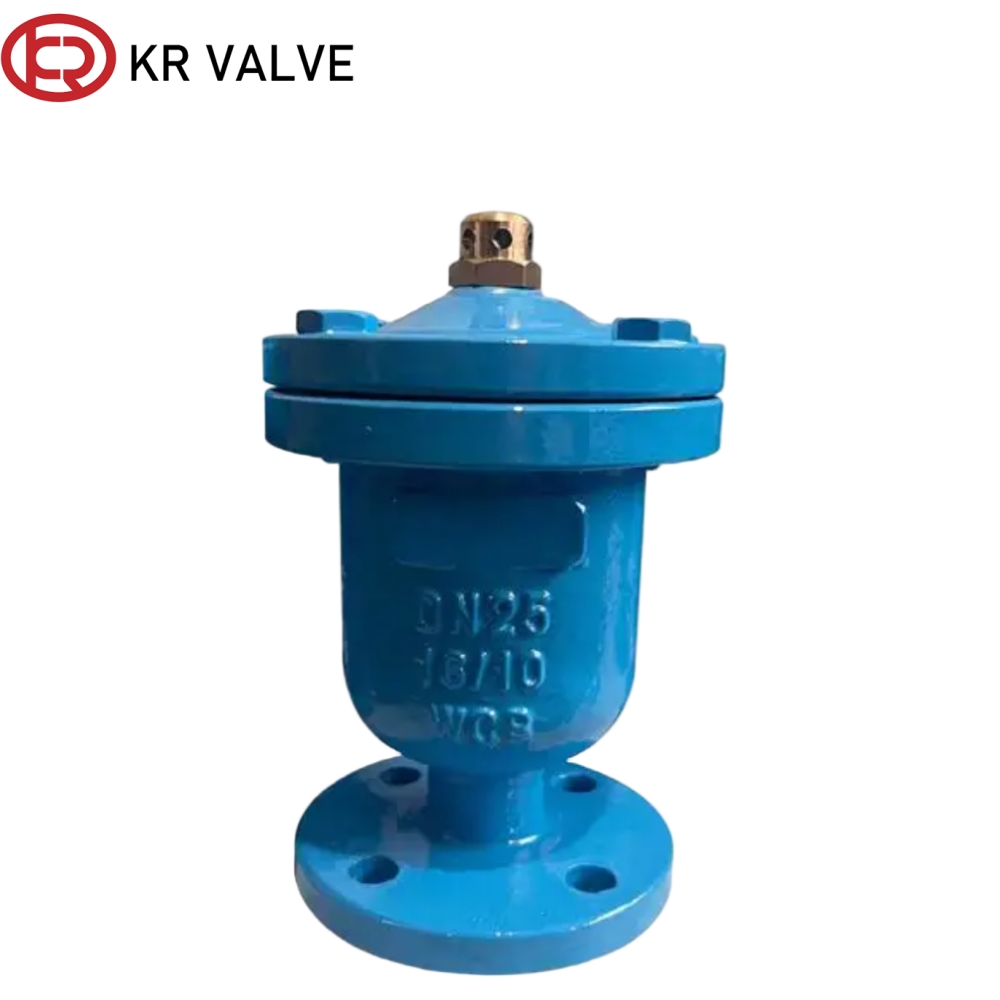

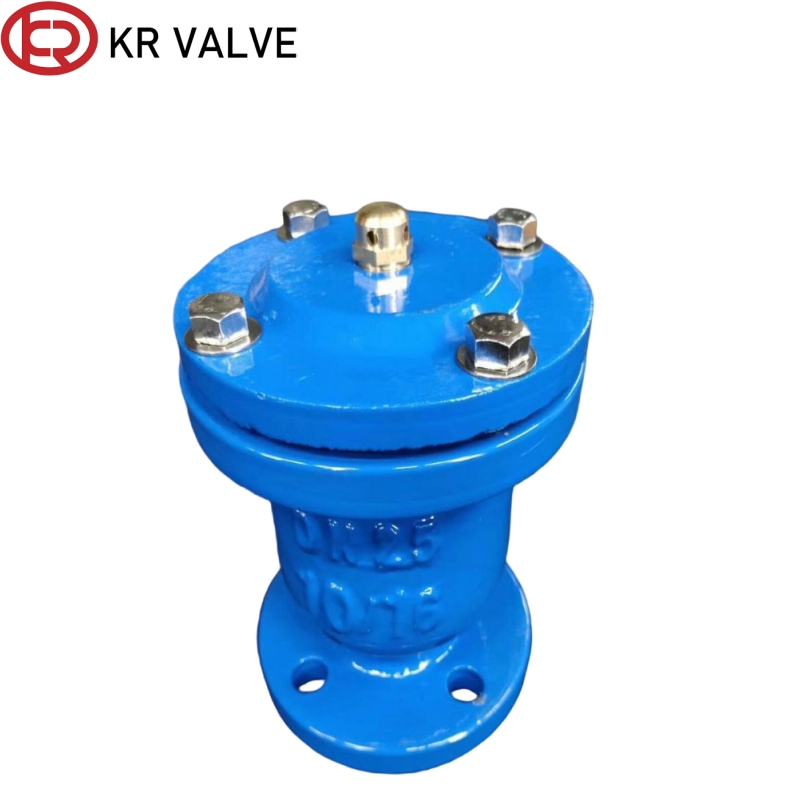

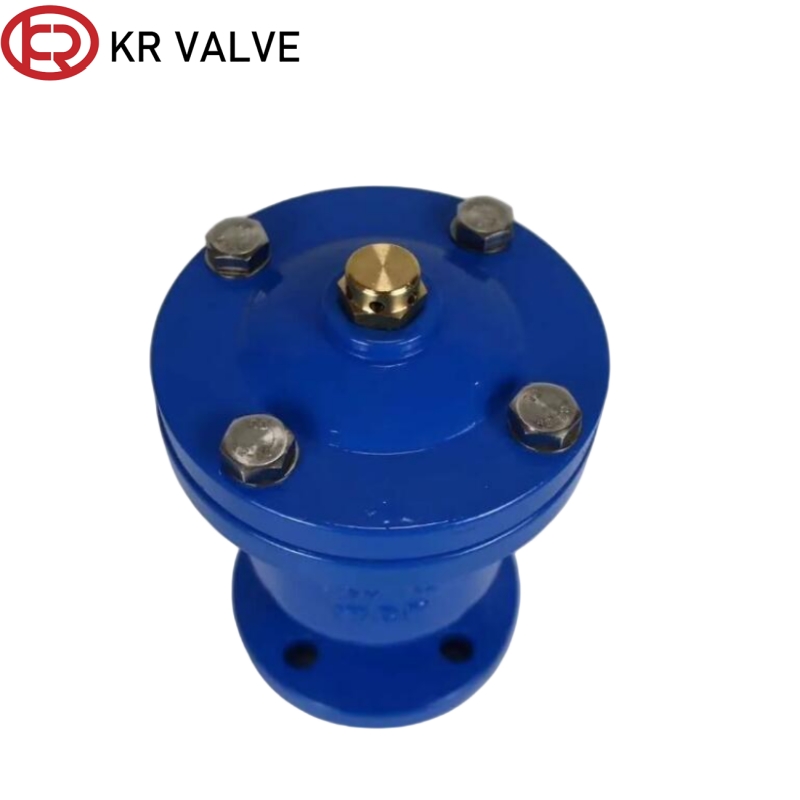

OEM Automatic air release valve single port type WCB material PN16 Supplier, Suppliers
OEM Automatic air release valve single port type WCB material PN16 Supplier, Suppliers
OEM Automatic air release valve single port type WCB material PN16 Supplier, Suppliers
1 / 3
OEM Automatic air release valve single port type WCB material PN16 Supplier, Suppliers
OEM Automatic air release valve single port type WCB material PN16 Supplier, Suppliers
OEM Automatic air release valve single port type WCB material PN16 Supplier, Suppliers

OEM Automatic air release valve single port type WCB material PN16 Supplier, Suppliers

Type：Flanage type

Series：QB1-10/16

Size: DN40-DN300/2”-12”

Pressure rating: PN6/PN10/PN16/PN25

Design standard: BS/API/DIN/JIS

Service: OEM&ODM

The single port air release valve with a single hole large exhaust outlet, rapid and large exhaust in the early stage of water injection, micro continuous exhaust in operation, elimination of air resistance, automatic sealing after full water, no dripping, no leakage.

Application Scenarios

The flange single port exhaust valve mainly used at the high point exhaust of municipal water supply, fire protection, heating and ventilation, high-rise water supply and long-distance water transmission pipelines.

Send Inquiry

Product Description

Valve Type: Exhaust valve Structure: Single port
Standard: BS/API/DIN/JIS Workmanship: Investment casting
Sealing direction: Single-directional Sealing grade: Zero leakage
Temperature: -20°C < T < 120°C Operation: Self-starting

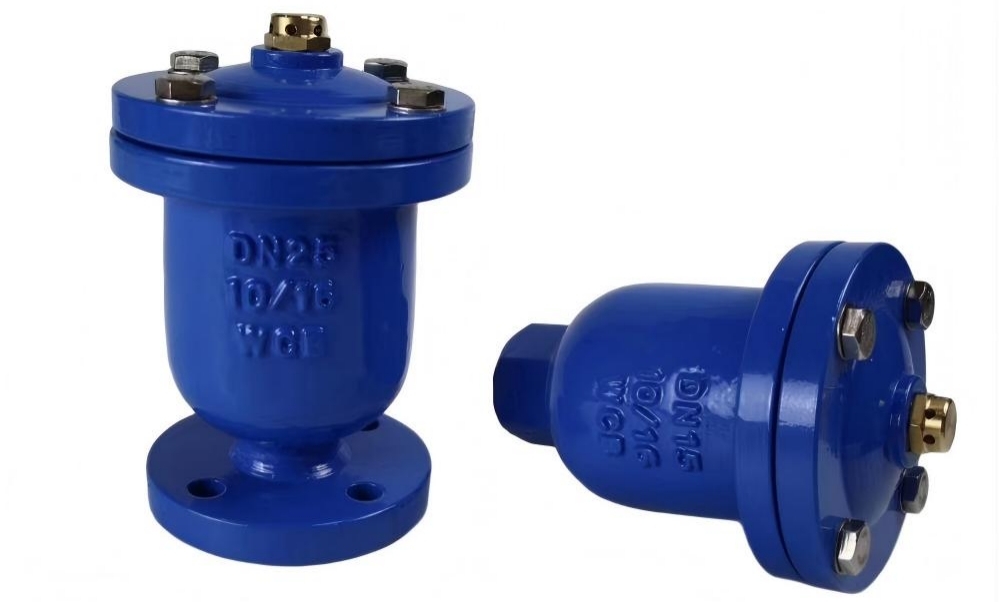

Single port air exhaust valve ductile iron PN16

Characteristics

★

The single port air vent valve is fully automatic operation, requiring no manual intervention. It features low resistance, ensuring no impact on pipeline flow. Its simple design makes maintenance easy and prevents jamming.

Characteristics

Advantages

Simple structure and low failure rate: Only floating ball and sealing nozzle inside, no complex mechanisms. Not easy to jam or block; maintenance-free for clean water systems.
Wide application scope: Suitable for municipal water supply, fire protection, heating, ventilation, irrigation, and industrial circulating water. Complete caliber specifications from DN25 up to DN100.
Vertical installation: Easy maintenance; only the front valve needs to be closed, no need to disassemble the entire pipeline.
Cost-effective: More affordable than compound exhaust valves and more durable than small caliber screw valves. Ideal for batch use in large projects.

Material Specifications

Component Material Options
Body & Bonnet Cast iron HT200 / Stainless steel / Carbon steel
Floating Ball 304 Stainless steel (Vent: H59 Steel / H59 Brass)
Sealing Ring NBR
Elastic Screw A3

Main Dimensions

Dimension Diagram
DN(mm) D D1 D2 Φ H
15956545135210
201057555135210
251158565135210
4014011580150210
150160125100150210

Packing

Standard export wooden case packaging is used to ensure safety during transit.

Packing

Frequently Asked Questions

What is the primary function of this single port exhaust valve?
It is designed to automatically discharge air from the pipeline to prevent air locks and ensure smooth flow in water systems.
Does this valve require manual operation?
No, it is a fully automatic, self-starting valve that functions based on the internal floating ball mechanism.
What materials are used for the valve body?
The body can be manufactured from Cast Iron (HT200), Stainless Steel, or Carbon Steel depending on your application needs.
What is the working temperature range?
The valve is designed to operate effectively in temperatures ranging from -20°C to 120°C.
How is the valve maintained?
Maintenance is simple due to its vertical installation. You only need to close the front valve for servicing without disassembling the whole pipeline.
What standards do these valves comply with?
Our valves are manufactured to meet BS, API, DIN, and JIS international standards.
