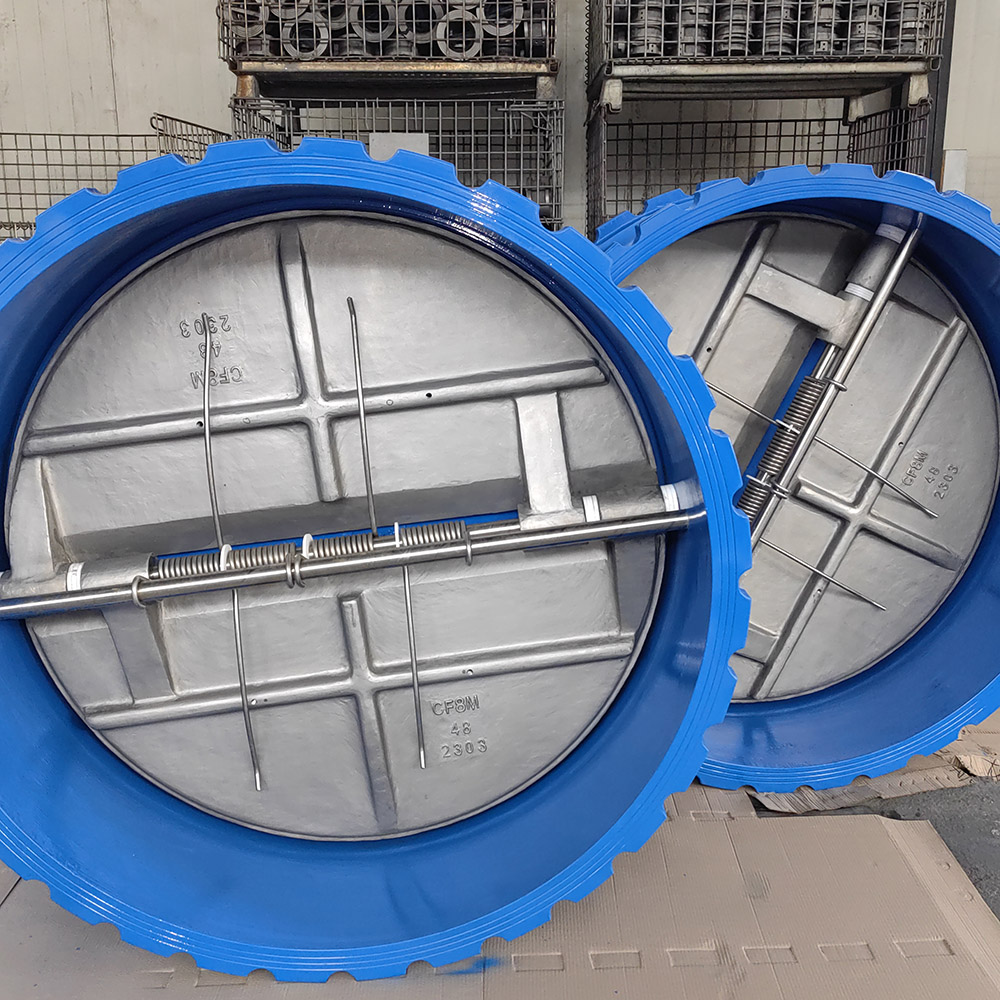

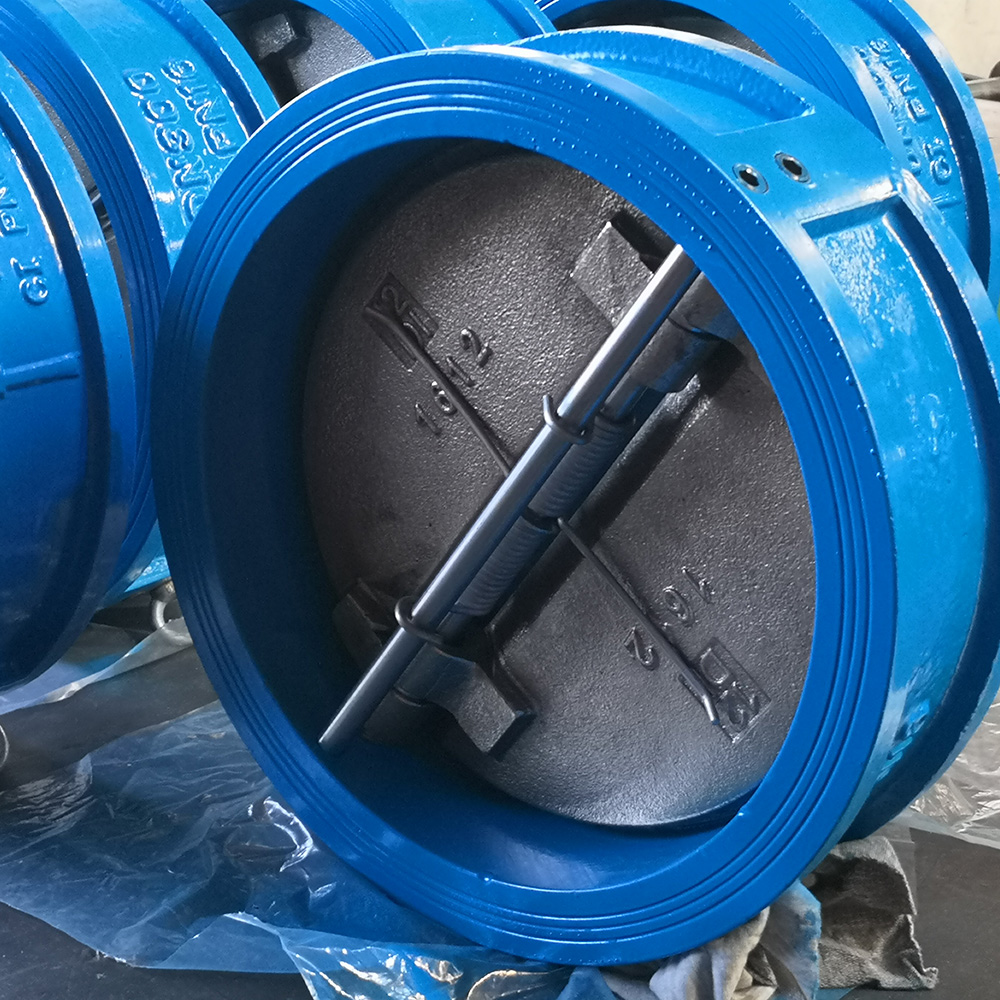

Wholesale One Way Valve Ductile/ Cast Iron Body CF8 Disc Supplier, Manufacturer
Wholesale One Way Valve Ductile/ Cast Iron Body CF8 Disc Supplier, Manufacturer
Wholesale One Way Valve Ductile/ Cast Iron Body CF8 Disc Supplier, Manufacturer
1 / 3
Wholesale One Way Valve Ductile/ Cast Iron Body CF8 Disc Supplier, Manufacturer
Wholesale One Way Valve Ductile/ Cast Iron Body CF8 Disc Supplier, Manufacturer
Wholesale One Way Valve Ductile/ Cast Iron Body CF8 Disc Supplier, Manufacturer

Wholesale One Way Valve Ductile/ Cast Iron Body CF8 Disc Supplier, Manufacturer

Type: Wafer type

Series: H71X-10/16

Size: DN40-DN700/2”-28”

Pressure rating: PN6/PN10/PN16/PN25

Design standard: BS5153

Service: OEM&ODM

The dual disc spring wafer check valve is designed to prevent medium backflow in pipelines, achieving automatic opening and closing via the dynamic force generated by the inherent medium flow.

Send Inquiry

Product Description

⚙️ Product Specifications

Valve Type: Wafer check valve Structure: Double disc
Standard: BS5153 Workmanship: Investment casting
Sealing direction: Single-directional Sealing grade: Zero leakage
Temperature: -20°C < T < 120°C Operation: Self-starting

🔍 Characteristics

With a wafer-type structure, it can be directly clamped between two pipeline flanges, eliminating the need for extra installation clearance. Compared with flange-end check valves, it significantly minimizes the overall footprint of the piping system, making it ideal for space-restricted applications.

Characteristics

⭐ Advantages

  • Anti impact, shock absorption and noise reduction: Partial clamp check valves are equipped with buffering mechanisms or damping devices, which can reduce the impact force when the valve disc is closed, weaken the influence of water hammer effect, reduce the noise and vibration during valve opening and closing.
  • Low maintenance cost: The structure has a high degree of modularity, and vulnerable parts such as valve discs and seats can be quickly disassembled and replaced; the inner wall of the flow channel is smooth and not easy to accumulate impurities.
  • Wide material adaptability: The valve body can be made of ductile iron, cast steel, stainless steel and other materials, adapting to various working conditions such as water, sewage, oil, acid and alkali media.
Advantages

📦 Packing

Standard export wooden case packaging ensures the safety of products during long-distance transportation.

Standard export wooden case packaging

🏭 Application Scenarios

It is widely applied in piping systems across diverse sectors including water supply, wastewater treatment, fire protection, petroleum, chemical processing, power generation and metallurgy.

Application 1
Application 2
Application 3

🛠️ Material Details

Part Material Name Code Working Temp
Body Cast Iron / Ductile Iron / Carbon Steel / Stainless Steel Z / Q / C / P -
Disc Plated Ductile Iron / Aluminum Bronze / Stainless Steel 1 / 2 / 5 / 7 -
Rubber Gasket EPDM / Neoprene / NBR X3 / X4 / X5 / X7 -50 ~ +150°C
Stem & Spring Stainless Steel - -

📏 Dimensions

Dimension Diagram
DN D D1 D2 L R t
mm inch - - - - - -
502"1076543.34328.219
1004"16211790.86452.827
2008"273224198.289104.433
30012"378310283.9114148.343
60024"690624572.6178295.473

❓ Frequently Asked Questions

Q1: What are the main advantages of a wafer check valve?
A1: Its compact design allows for easy installation between flanges, saving significant space and reducing the overall weight of the piping system.
Q2: Can this valve prevent water hammer effects?
A2: Yes, it is designed with anti-impact and shock absorption mechanisms to weaken the water hammer effect and reduce noise during operation.
Q3: What materials are available for the valve body?
A3: The body can be customized with ductile iron, cast iron, carbon steel, or stainless steel to suit different media types.
Q4: Is the valve suitable for high-temperature applications?
A4: The standard working temperature range is -20°C to 120°C, depending on the sealing material used.
Q5: Does this valve require external power to operate?
A5: No, it is a self-starting valve that operates based on the flow and pressure of the medium within the pipeline.
Q6: What industry standards does this valve comply with?
A6: This specific wafer check valve is manufactured according to the BS5153 standard.
