Flanged butterfly valves stand out as a versatile fluid control solution, integrating structural innovation, operational efficiency, and reliable performance across diverse industrial scenarios. Their design combines the advantages of flanged end connections (secure installation, high-pressure adaptability) with the inherent benefits of butterfly valve mechanics (compactness, quick operation).

Key Advantages

• Quarter-Turn Actuation: The disc rotates 90° to switch positions, enabling fast operation (1-5 seconds) for emergency isolation.
• Low Torque & Energy Efficiency: Streamlined disc design reduces friction, lowering actuation torque by 40-60% compared to ball valves.
• Superior Flow Characteristics: Straight-through flow path with minimal pressure drop, reducing pumping energy requirements.
• Bidirectional Sealing: Resilient or metal-seated designs provide bubble-tight sealing in both flow directions.

Packaging & Delivery

Standard export wooden case packaging is used to ensure the safety of the valves during international transit.

Application Scenarios

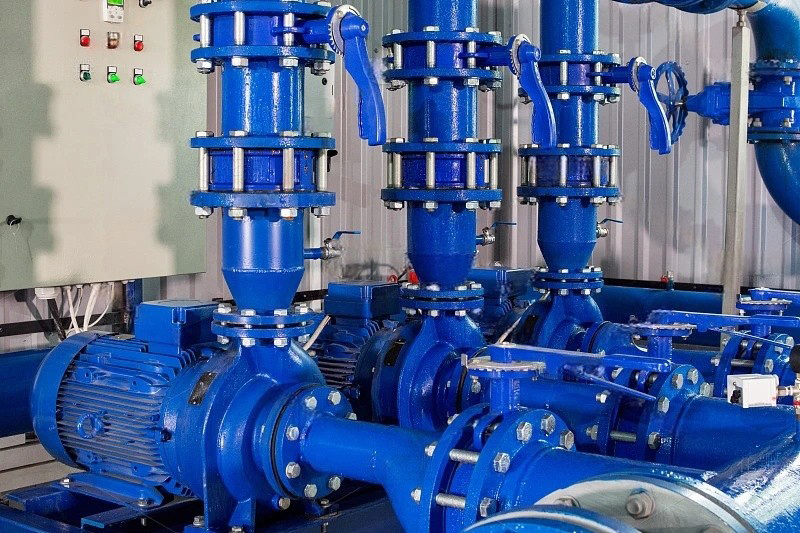

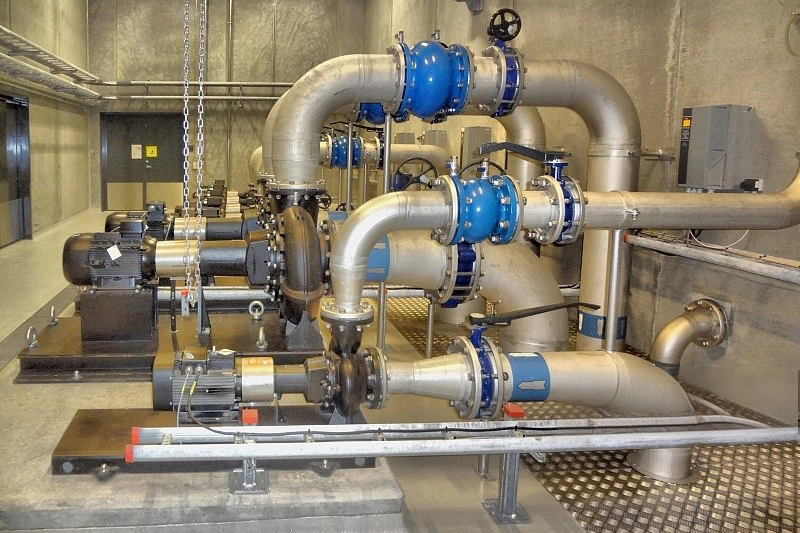

Flanged butterfly valves are widely preferred in water treatment, power plant cooling circuits, and general industrial fluid systems. Their secure bolted attachment ensures leak-tight performance in both low and high-pressure environments.

Material Specifications

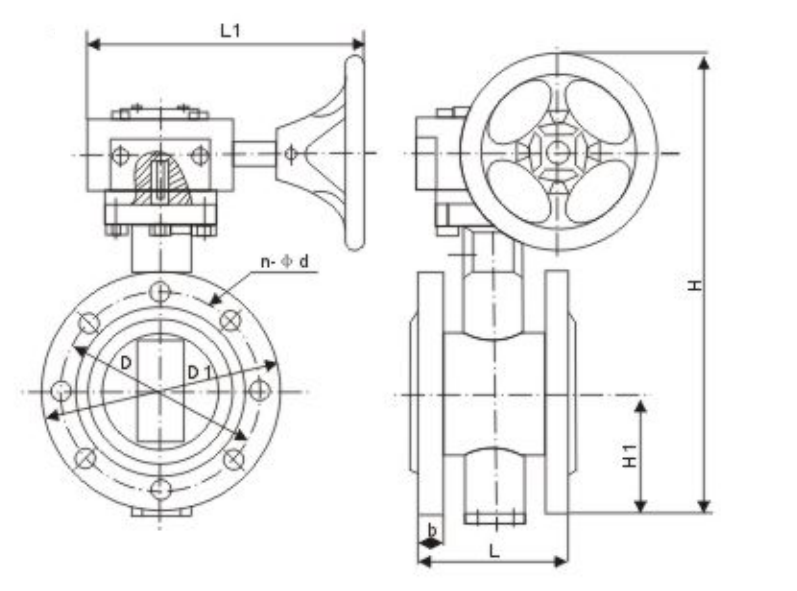

Dimensions (DN50 - DN2000)

*Partial data shown. Full range up to DN2000 available upon request.
