The eccentric butterfly valve adopting a double eccentric structure design, it has the functions of intercepting, connecting, and regulating flow, which can meet the diverse needs of urban water supply and drainage, building fire protection, metallurgical hydropower and other system pipelines.

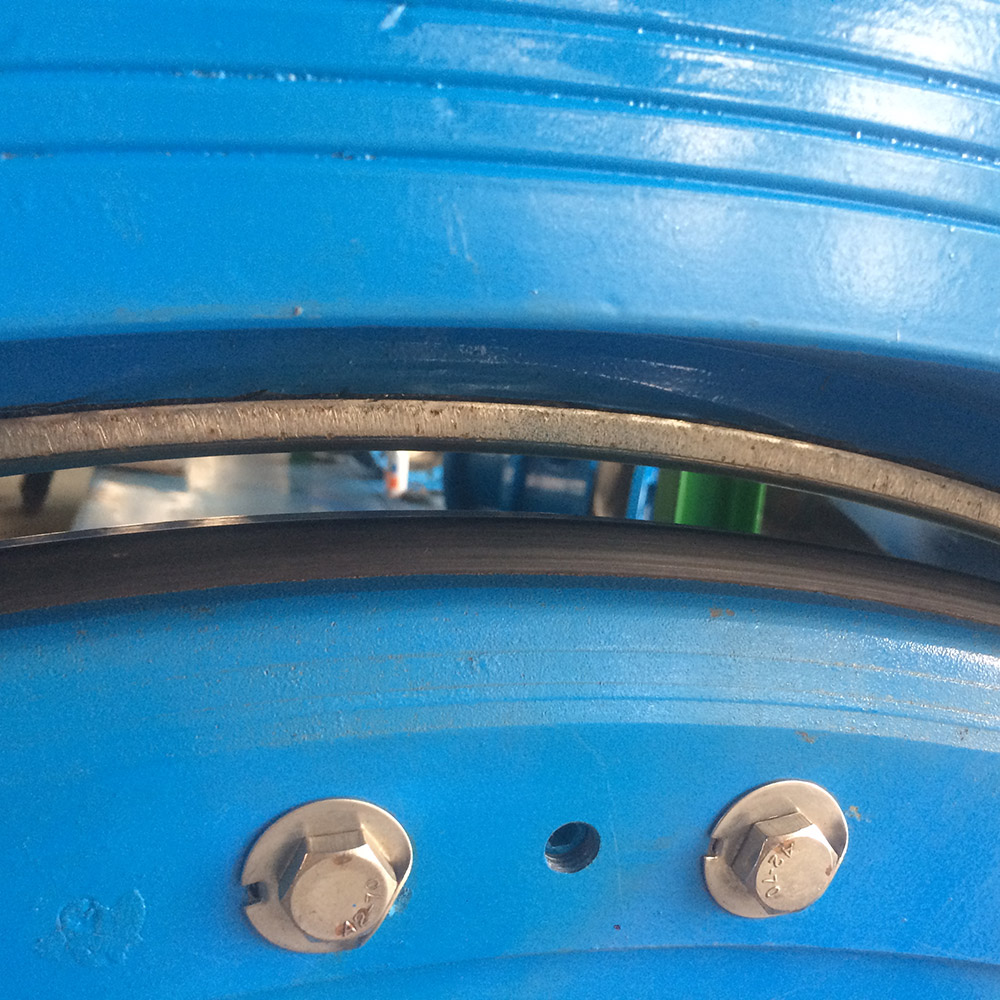

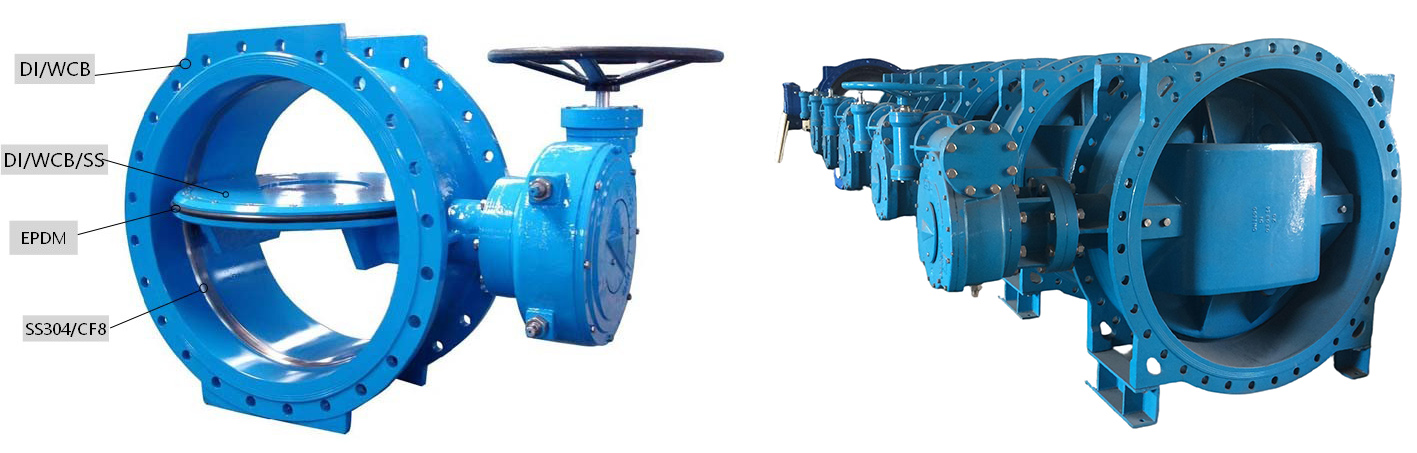

Its sealing surface is welded with stainless steel material, combined with a dual sealing ring structure, which effectively solves the problem of shaft hole leakage while improving corrosion resistance. The product achieves or exceeds the national standard level in performance indicators through the application of flow field simulation and stress measurement technology.

• Reduced Friction: The axis of the valve stem deviates from the center of the sealing surface and the center of the pipeline, causing the butterfly plate to quickly detach or come into contact with the valve seat during the opening and closing process.
• Superior Sealing: The eccentric structure utilizes the principle of mechanical torque to generate stronger sealing pressure during closure, ensuring a tight seal. It can achieve bidirectional sealing with a leakage level of up to ANSI Class VI (zero leakage).
• Durability: Allows the use of metal sealing rings (stainless steel, hard alloy) which can withstand higher temperatures and pressures (up to 200°C or higher).
