KR VAVLE
1 / 2
| Valve Type: | Flange ball valve | Structure: | 2PCS type |
| Standard: | BS5351 | Workmanship: | Investment casting |
| Sealing direction: | Single-directional | Sealing grade: | Zero leakage |
| Temperature: | -20°C < T < 120°C | Operation: | Handle |

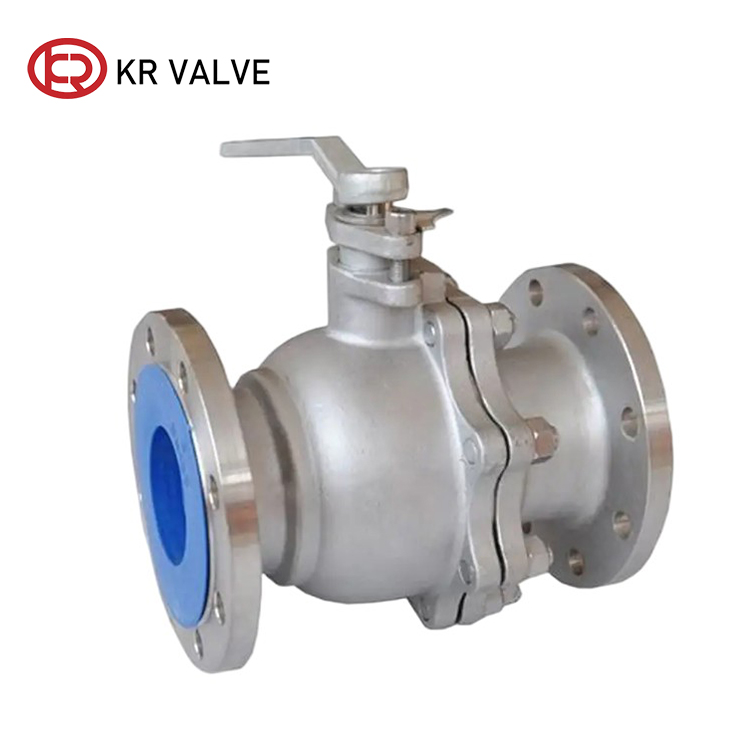

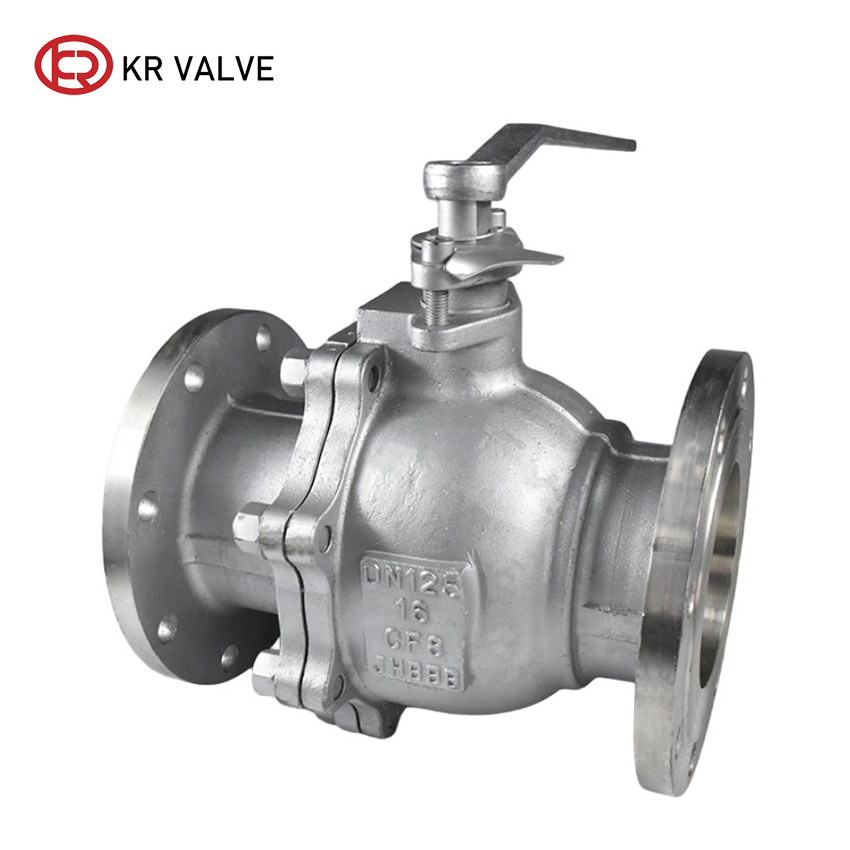

The core components of this CF8 ball valve, such as the valve body, ball body, and valve stem, are made of 304 stainless steel material, which can withstand corrosion from water, steam, weak acids and bases, and some corrosive media. It is suitable for working conditions such as chemical, water treatment, food and medicine that require high compatibility with media.
Standard export wooden case packaging ensures the safety and integrity of the valves during international transit.
The ball valve is suitable for various media such as water, steam, oil, liquefied gas, natural gas, coal gas, nitric acid, acetic acid, oxidizing media, urea, etc.
| Part Name | Material | Part Name | Material |
| Body | WCB, CF8, CF8M | Stem | 2Cr13, 304, 316 |
| Seat | PTFE | Packing | PTFE |
| Ball | WCB, CF8, CF8M | Packing gland | WCB, CF8, CF8M |
| Sealing gasket | PTFE | Handle | Stainless steel |
| PN (MPa) | DN (mm) | D | D1 | D2 | D3 | f | b | n-Φ d | L | H | W |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.6 | 15 | 13 | 45 | 65 | 95 | 2 | 14 | 4-Φ 14 | 130 | 75 | 130 |
| 20 | 19 | 55 | 75 | 105 | 2 | 14 | 4-Φ 14 | 140 | 84 | 170 | |
| 25 | 25 | 65 | 85 | 115 | 2 | 14 | 4-Φ 14 | 150 | 90 | 170 | |
| 32 | 32 | 78 | 100 | 135 | 2 | 16 | 4-Φ 18 | 165 | 107 | 200 | |
| 40 | 38 | 85 | 110 | 145 | 3 | 16 | 4-Φ 18 | 180 | 127 | 250 | |
| 50 | 51 | 100 | 125 | 160 | 3 | 16 | 4-Φ 18 | 200 | 140 | 250 | |
| 65 | 64 | 120 | 145 | 180 | 3 | 18 | 4-Φ 18 | 220 | 164 | 350 | |
| 80 | 76 | 135 | 160 | 195 | 3 | 20 | 8-Φ 18 | 250 | 177 | 350 | |
| 100 | 102 | 155 | 180 | 215 | 3 | 20 | 8-Φ 18 | 280 | 206 | 420 | |
| 125 | 127 | 185 | 210 | 245 | 3 | 22 | 8-Φ 18 | 320 | 292 | 700 | |
| 150 | 152 | 210 | 240 | 280 | 3 | 24 | 8-Φ 23 | 360 | 320 | 1000 | |
| 200 | 203 | 265 | 295 | 335 | 3 | 26 | 12-Φ 23 | 400 | 365 | 1300 | |
| 250 | 254 | 320 | 355 | 405 | 3 | 30 | 12-Φ 25 | 533 | 420 | 1800 | |
| PN 2.5 MPa | |||||||||||
| 2.5 | 15 | 13 | 45 | 65 | 95 | 2 | 14 | 4-Φ 14 | 130 | 75 | 130 |
| 20 | 19 | 55 | 75 | 105 | 2 | 14 | 4-Φ 14 | 140 | 84 | 170 | |
| 25 | 25 | 65 | 85 | 115 | 2 | 14 | 4-Φ 14 | 150 | 90 | 170 | |
| 32 | 32 | 78 | 100 | 135 | 2 | 16 | 4-Φ 18 | 165 | 107 | 200 | |
| 40 | 38 | 85 | 110 | 145 | 3 | 16 | 4-Φ 18 | 180 | 127 | 250 | |
| 50 | 51 | 100 | 125 | 160 | 3 | 20 | 4-Φ 18 | 200 | 140 | 250 | |
| 65 | 64 | 120 | 145 | 180 | 3 | 22 | 8-Φ 18 | 220 | 164 | 350 | |
| 80 | 76 | 135 | 160 | 195 | 3 | 22 | 8-Φ 18 | 250 | 177 | 350 | |
| 100 | 102 | 160 | 190 | 230 | 3 | 24 | 8-Φ 23 | 280 | 206 | 420 | |
| 125 | 127 | 188 | 220 | 270 | 3 | 28 | 8-Φ 25 | 320 | 292 | 700 | |
| 150 | 152 | 218 | 250 | 300 | 3 | 30 | 8-Φ 25 | 360 | 320 | 1000 | |
| 200 | 203 | 278 | 310 | 360 | 3 | 34 | 12-Φ 25 | 400 | 365 | 1300 | |
| 250 | 254 | 332 | 370 | 425 | 3 | 36 | 12-Φ 30 | 533 | 420 | 1800 | |
The main components, including the body, ball, and stem, are typically made from high-quality CF8 (304 Stainless Steel) or CF8M (316 Stainless Steel), providing excellent corrosion resistance.
This specific model is designed for temperatures between -20°C and 120°C. For steam applications within this range, it performs exceptionally well due to its PTFE sealing.
A 2-piece (2PCS) ball valve consists of two main body parts. This design allows for a larger ball and better flow characteristics compared to a 1-piece valve, while being easier to maintain than a 3-piece valve.
Yes, due to its compact and robust flange design, it can be installed either horizontally or vertically to accommodate different spatial layouts in your piping system.
Yes, the valve is engineered for a "Zero Leakage" sealing grade, utilizing high-quality PTFE seats to ensure a tight seal even in low-pressure conditions.
The valve is manufactured according to the BS5351 standard, ensuring international compatibility and reliability for industrial flange connections.
