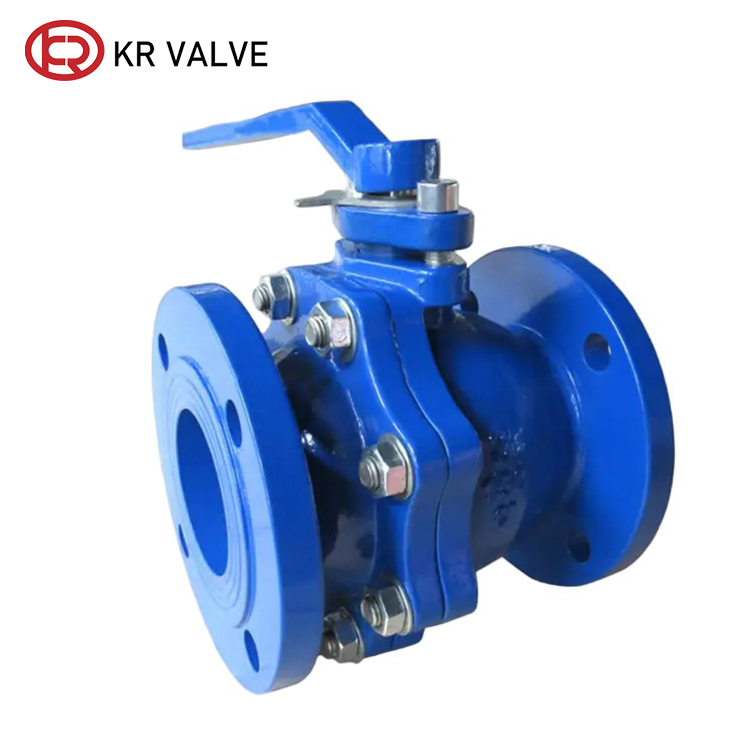

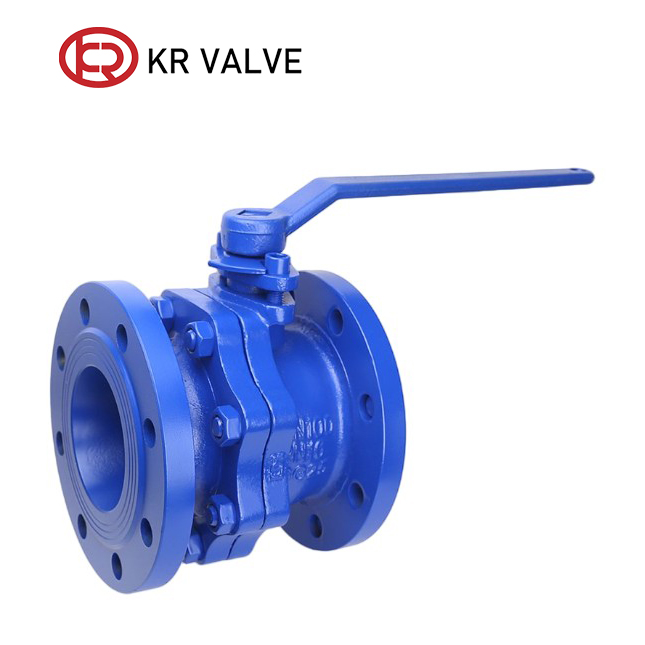

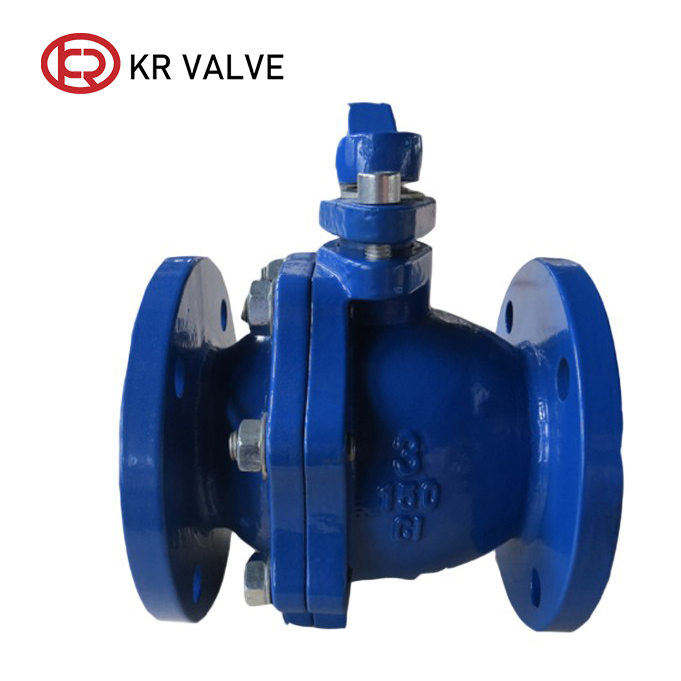

Wholesale Ductile iron flange ball valve PTFE seat Supplier, Factories

Type: Flange type

Series: Q41F-10/16

Size: DN50-DN300/2â€-8â€

Pressure rating: PN16/PN25

Design standard: BS5351

Service: OEM&ODM

The valve body can choose ductile iron GGG40 and cast iron GG25 materials, which have high strength, toughness, and corrosion resistance, and can withstand certain pressures and temperatures.

Send Inquiry

Product Description

Technical Specifications

Valve Type:	Flange ball valve	Structure:	2PCS type
Standard:	BS5351	Workmanship:	Investment casting
Sealing Direction:	Single-directional	Sealing Grade:	Zero leakage
Temperature:	-20°C < T < 120°C	Operation:	Handle

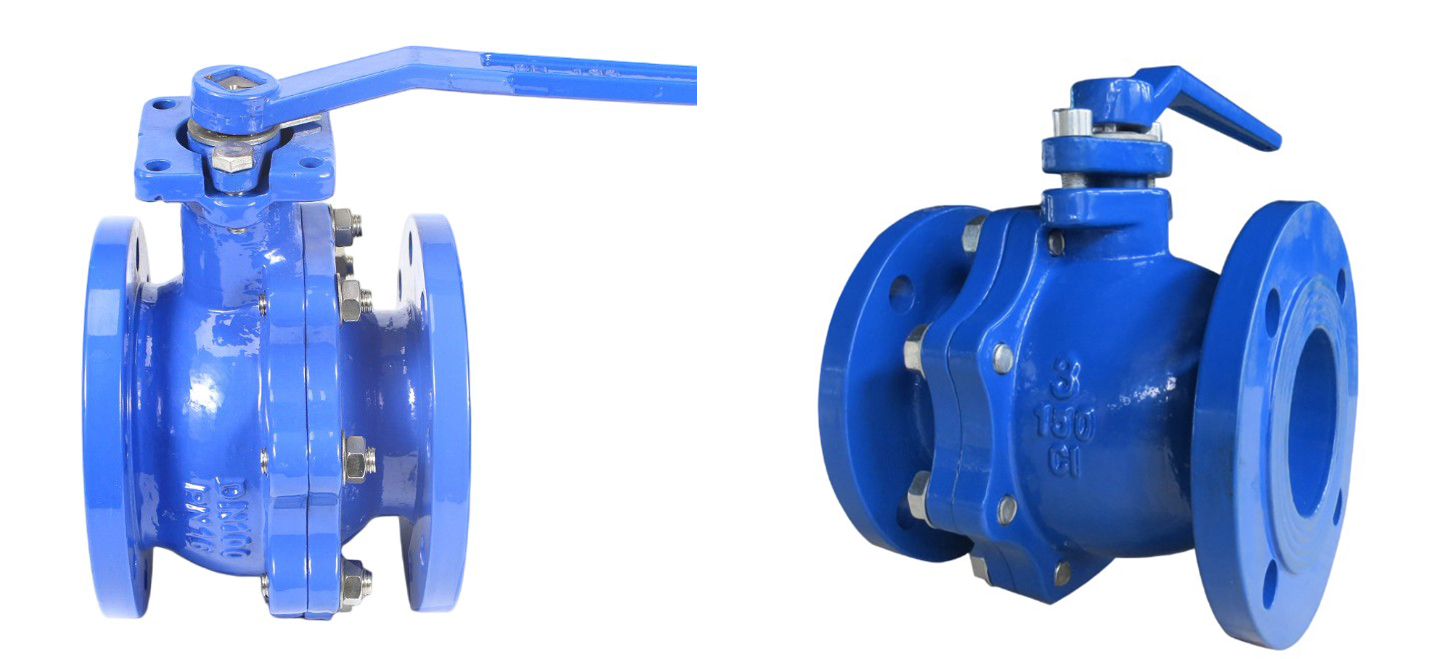

Characteristics

The ball valve features exceptional sealing performance. The seat sealing ring is crafted from PTFE/RPTFE material, ensuring a tight fit with the ball. As medium pressure increases, the sealing force follows, providing high reliability for critical applications.

Key Advantages

Low Fluid Resistance: Ball valves offer the lowest resistance among all valve types, minimizing energy loss even in reduced diameter configurations.

Superior Sealing: Elastic valve seat materials adapt to pressure changes to maintain zero leakage.

Easy Operation: Quick 90-degree rotation allows for fast opening and closing with minimal operating torque, suitable for both manual and automated control.

Packing & Delivery

All products are secured in Standard export wooden cases to ensure safety during international transit.

Application Scenarios

This ductile iron soft seal ball valve is a cost-effective solution for low to medium pressure environments. It is widely used in:

Municipal water supply and drainage systems

HVAC (Heating, Ventilation, and Air Conditioning)

Mining and non-corrosive industrial pipelines

Material List

Part Name	Material	Part Name	Material
Body	WCB, CF8, CF8M	Stem	2Cr13, 304, 316
Seat	PTFE	Packing	PTFE
Ball	WCB, CF8, CF8M	Packing Gland	WCB, CF8, CF8M
Sealing Gasket	PTFE	Handle	Stainless Steel

Dimensions (PN 1.6 - 2.5 MPa)

PN	DN	D	D1	D2	D3	L	H	W
1.6	15	13	45	65	95	130	75	130
1.6	50	51	100	125	160	200	140	250
1.6	100	102	155	180	215	280	206	420
2.5	25	25	65	85	115	150	90	170
2.5	80	76	135	160	195	250	177	350

Frequently Asked Questions

Q: What is the manufacturing standard for this flange ball valve? A: This valve is manufactured according to the BS5351 standard, ensuring high quality and international compatibility.

Q: Can this valve handle high-temperature media? A: The working temperature range is -20°C to 120°C, making it suitable for most standard water, HVAC, and industrial fluid applications.

Q: What does "Zero Leakage" sealing grade mean? A: It means the valve achieves a complete bubble-tight seal in the designated flow direction, preventing any fluid loss when closed.

Q: What materials are available for the valve body? A: We offer multiple material options including WCB (Carbon Steel), CF8 (304 Stainless Steel), and CF8M (316 Stainless Steel).

Q: How is the valve operated? A: It is designed for manual operation using a sturdy handle, requiring only a 90-degree turn for full opening or closing.

Q: Is it suitable for corrosive fluids? A: The ductile iron version is best for non-strong corrosion working conditions. For corrosive media, we recommend choosing the CF8M stainless steel body.
