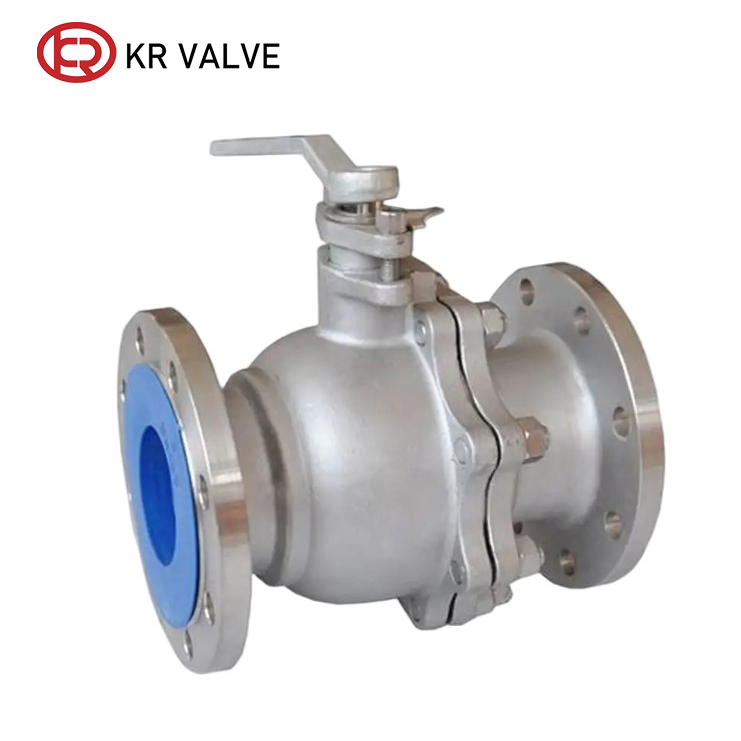

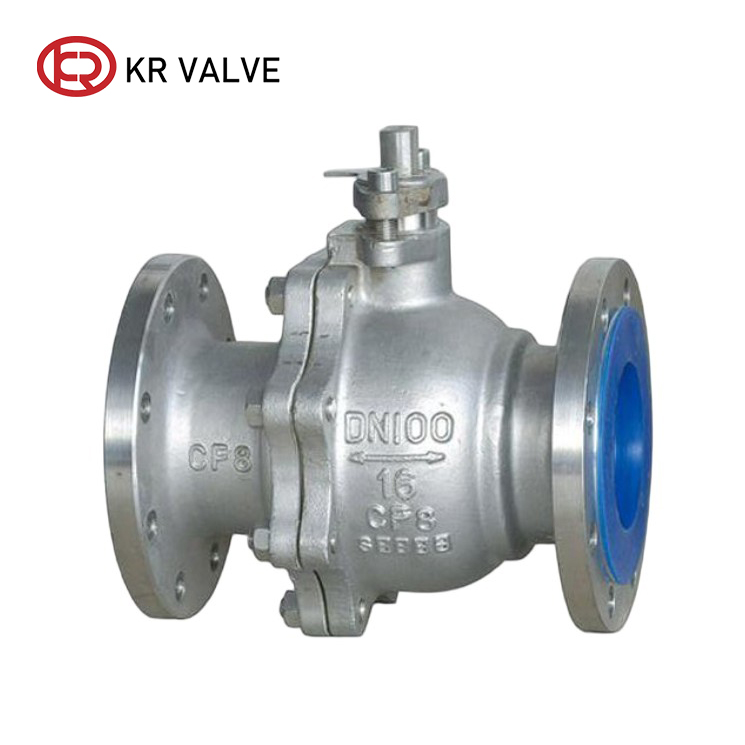

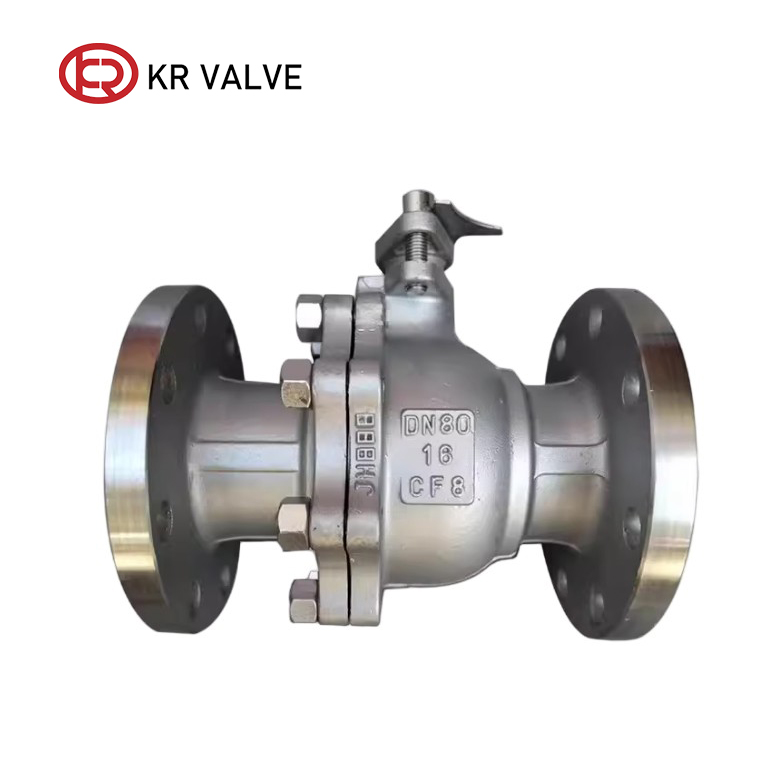

Custom Flange Stainless Steel Mounted Ball Valve 4 Inch Handle Manufacturers, Factory

Type: Flange type

Series: Q41F-10/16

Size: DN300-DN1000/12â€-40â€

Pressure rating: 150LB/300LB

Design standard: BS5351

Service: OEM&ODM

The characteristic of mounted ball valve is that the sphere is fixed by the upper and lower valve stems, and the sphere itself does not produce displacement during rotation, only achieving medium connection and disconnection through rotation.

Send Inquiry

Product Description

⚙️

Product Specifications

Valve Type:	Flange ball valve	Structure:	Mounted ball type
Standard:	BS5351	Workmanship:	Investment casting
Sealing direction:	Double-directional	Sealing grade:	Zero leakage
Temperature:	-20°C < T < 130°C	Operation:	Handle

🔧

Characteristics

The fixed ball valves are usually driven by pneumatic, electric, hydraulic and other power sources due to the large opening and closing torque under high pressure conditions. Some small-diameter models can be equipped with manual gearboxes to reduce operating intensity.

⭐

Key Advantages

✔

Strong adaptability to high-pressure working conditions: The fixed ball structure can withstand higher medium pressures, with a nominal pressure of Class 1500 or even higher, suitable for scenarios such as long-distance oil and gas pipelines, high-pressure chemical processes, etc.

✔

Stable and reliable sealing performance: The bidirectional valve seat design supports bidirectional sealing. The sealing effect is not affected by the flow direction of the medium, achieving zero leakage for flammable, explosive, and toxic media.

✔

Large caliber advantages: For large-diameter valves (DN300+), the fixed ball structure disperses force on the ball, preventing deformation and ensuring effortless operation in high flow systems.

📦

Packing

Standard export wooden case packaging ensures safety during international transportation.

🏭

Application Scenarios

The stainless steel ball valve is widely used in oil and gas long-distance pipelines, oil and gas field extraction, high temperature steam, and slurry conveying pipelines in the metallurgical and power industries.

🛠️

Material Specifications

Part name	Material	Part name	Material
Body	WCB, CF8, CF8M	Stem	2Cr13, 304, 316
Seat	PTFE	Packing	PTFE
Ball	WCB, CF8, CF8M	Packing gland	WCB, CF8, CF8M
Sealing gasket	PTFE	Handle	Stainless steel

📐

Dimensions

PN (MPa)	DN (mm)	D	D1	D2	D3	f	b	n-Φ d	L	H	W
1.6	15	13	45	65	95	2	14	4-Φ 14	130	75	130
	20	19	55	75	105	2	14	4-Φ 14	140	84	170
	25	25	65	85	115	2	14	4-Φ 14	150	90	170
	50	51	100	125	160	3	16	4-Φ 18	200	140	250
PN 2.5 Series
2.5	15	13	45	65	95	2	14	4-Φ 14	130	75	130
2.5	100	102	160	190	230	3	24	8-Φ 23	280	206	420

Frequently Asked Questions

Q1: What is the benefit of a mounted ball (fixed) structure? A: It effectively disperses the medium pressure, making it ideal for high-pressure and large-diameter applications where opening/closing torque needs to be managed.

Q2: Does this valve support bidirectional sealing? A: Yes, the bidirectional valve seat design ensures a zero-leakage seal regardless of the flow direction.

Q3: What standards are these valves manufactured to? A: These flange ball valves are manufactured in accordance with the BS5351 standard using investment casting workmanship.

Q4: Can these valves be automated? A: Absolutely. While handle operation is standard, they can be driven by pneumatic, electric, or hydraulic power sources for industrial automation.

Q5: What are the main materials used for the valve body? A: Common materials include WCB (Carbon Steel), CF8 (304 Stainless Steel), and CF8M (316 Stainless Steel).

Q6: What is the operating temperature range? A: The standard operating temperature range is between -20°C and 130°C.
